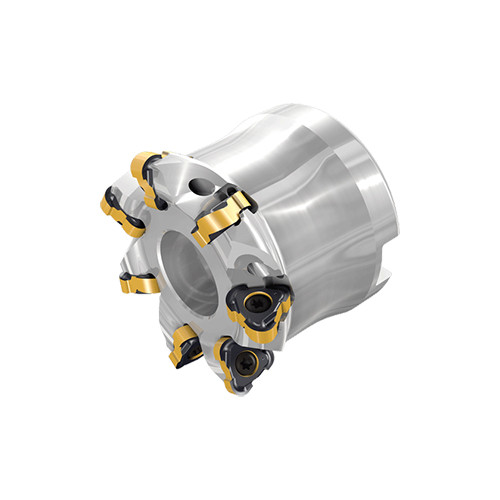

TR6 FR D52-07-22-10

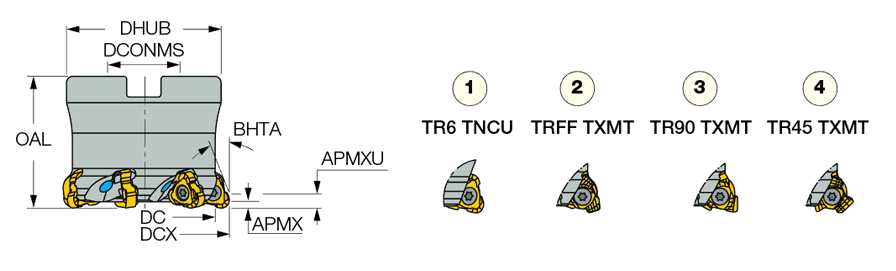

Multifunction face mills that carry four different insert geometries.
| Cutting Diameter (DC/DCX) | 52 mm | Arbor Style | A |
| Cutting Diameter (DC) | 47 mm | Master Insert Identification (MIID) | TR6 TNCU 100425 |
| Cutting Diameter Maximum (DCX) | 52 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 2.5 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Application | | Facing | Fast Feed Milling | Profiling | Shouldering | Slanted Shoulder & Chamfer | |
| Overall Length (OAL) | 40.15 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 47 mm | Unit | M |
Product Features
| Family Description | Multifunction face mills that carry four different insert geometries. | FamilyName | TR6 FR |

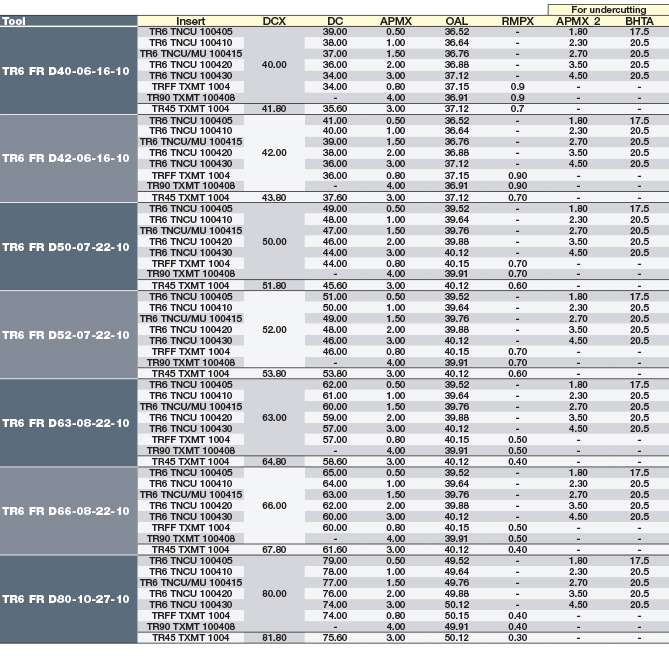

| Remarks | Note: The dimensions refer to master inserts, for other insert radii and geometries dimensions click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.4780
Name
Indexable Face Mills
FamilyName
TR6 FR
BrandName
Iscar
