P290 ACK D40-3-90-W40-18

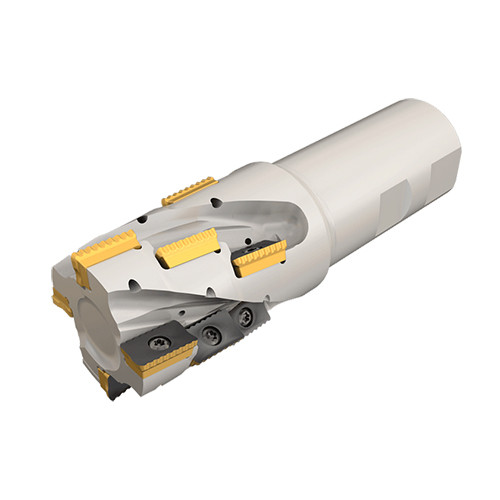

Extended flute endmills carrying 12 and 18 mm long edged inserts.
| Application | | Rampdown | Shouldering | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 15 | Cutting Direction (HAND) | Right Hand |

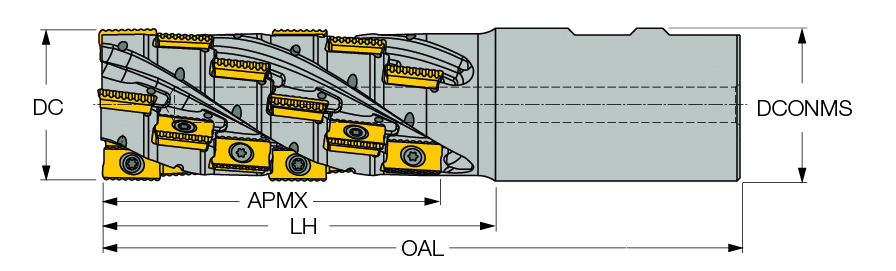

| Depth of Cut Maximum (APMX) | 90 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 40 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Tool Type | 90° Extended flute endmills |

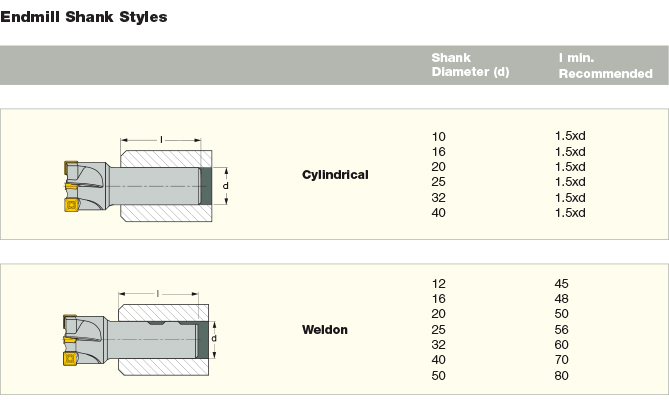

| Flute Count (NOF) | 3 | Connection Code Machine Side (CCMS) | Weldon |
| Overall Length (OAL) | 185 mm | Unit | M |
| Master Insert Identification (MIID) | P290 ACKT 1806PDR-FW |
Product Features
| Family Description | Extended flute endmills carrying 12 and 18 mm long edged inserts. | FamilyName | P290 ACK |
| Remarks | Maximum width of cut (AE) refer to More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.3650
Name
Shell Mills
FamilyName
P290 ACK
BrandName
Iscar
Related Documentation
