| Applicable Material | | Aluminum / Non-Ferrous Materials | | Tool Type | Turn Inserts AL, HTA Geometric |
| Application | | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Min D.O.C. | 0.2 mm |
| Insert Style | TCGT | Depth of Cut Maximum (APMX) | 3 mm |

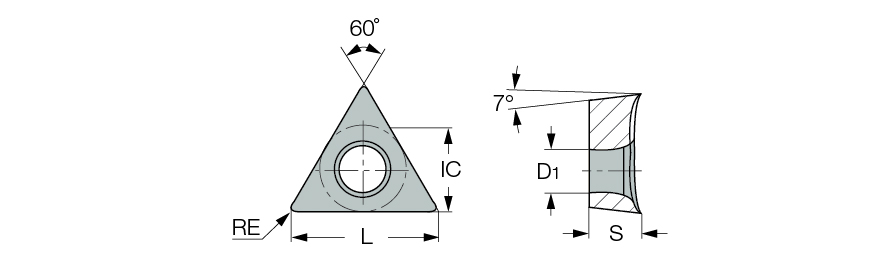

| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Size | 110204 | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Cutting Edge Length (L) | 11 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 2.38 mm | Chip Breaker Type | AS |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Coating | DLC | Body Material | Carbide |
| Grade | IC1520 | Unit | M |
| Fixing Hole Diameter (D1) | 2.8 mm |
Product Features

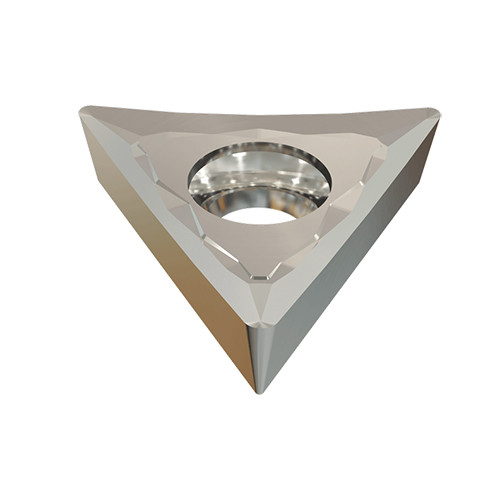

| Family Description | Triangular inserts with a 7° positive flank, very positive rake angle and sharp cutting edge for machining aluminum. | FamilyName | TCGT-AS |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Korea |
Shipping Info
Weight per item
0.0028
Name
Turning Indexable Inserts
FamilyName
TCGT-AS
BrandName
Iscar
