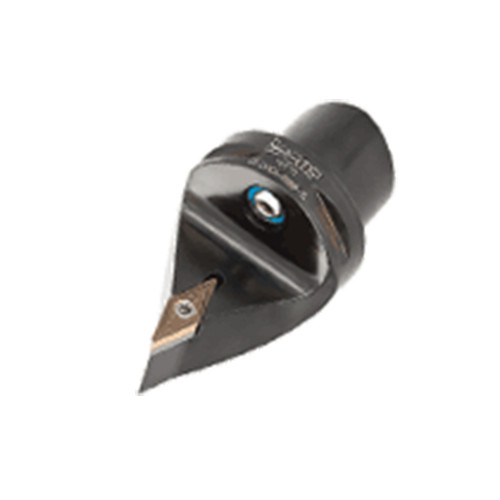

C5 SVVCN-00060-16
72.5° lead angle screw lock tools with CAMFIX (ISO 26623-1 standard) exchangeable shanks carrying 35° rhombic inserts with 7° clearance angle.

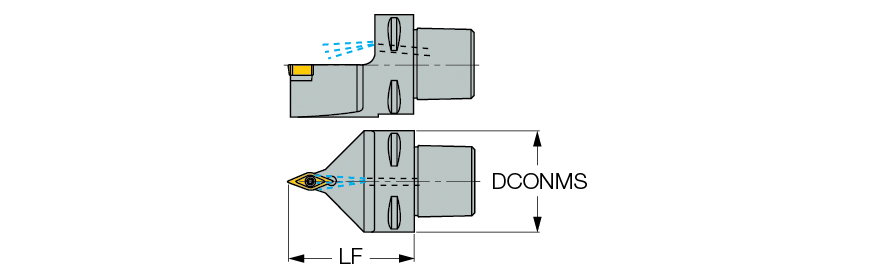

| Overall Length (OAL) | 80 mm | Application | | Ext. 35° Diamond 72.5° Approac | |
| Functional Length (LF) | 50 mm | Rake Angle Axial (GAMP) | -7.4 Degrees |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Rake Angle Radial (GAMF) | -4.3 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | Body Material | Steel |
| Cutting Direction (HAND) | Neutral | Tool Type | Tapered Shank Turning Tools |
| Master Insert Identification (MIID) | VC.. 1604 | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
Product Features
| Family Description | 72.5° lead angle screw lock tools with CAMFIX (ISO 26623-1 standard) exchangeable shanks carrying 35° rhombic inserts with 7° clearance angle. | FamilyName | C#-SVVCN |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.5780
Name
General Indexable Turning Tools
FamilyName
C#-SVVCN
BrandName
Iscar
