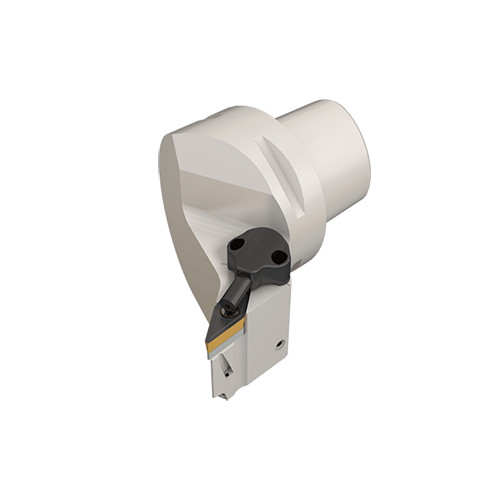

C6 SVJCR-45065-16-JHP
Screw lock tools with CAMFIX (ISO 26623-1 standard) exchangeable shanks and channels for high pressure coolant, carrying 35° Rhombic Inserts with 7° Clearance Angle.

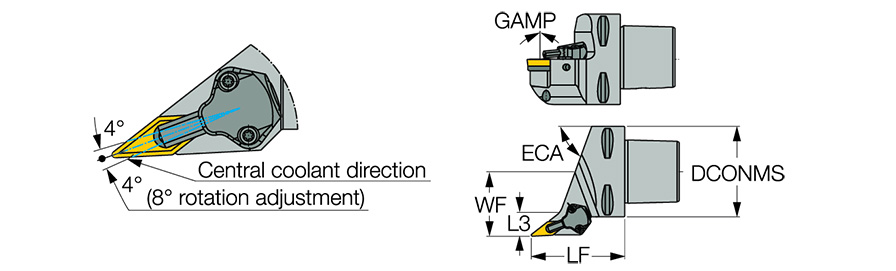

| Overall Length (OAL) | 103 mm | Application | | Ext. 35° Diamond 93° Approach | |
| Functional Length (LF) | 65 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Width (WF) | 45 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 9.52 mm | End Chamfer Angle (ECA) | 70 Degrees |
| Cutting Direction (HAND) | Right Hand | Tool Type | Tapered Shank Turning Tools |
| Master Insert Identification (MIID) | VCMT 1604 | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
Product Features
| Family Description | Screw lock tools with CAMFIX (ISO 26623-1 standard) exchangeable shanks and channels for high pressure coolant, carrying 35° Rhombic Inserts with 7° Clearance Angle. | FamilyName | C#-SVJCR/L-JHP |
| Remarks | For more details, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.2440
Name
General Indexable Turning Tools
FamilyName
C#-SVJCR/L-JHP
BrandName
Iscar
