IHRF 56-802BW

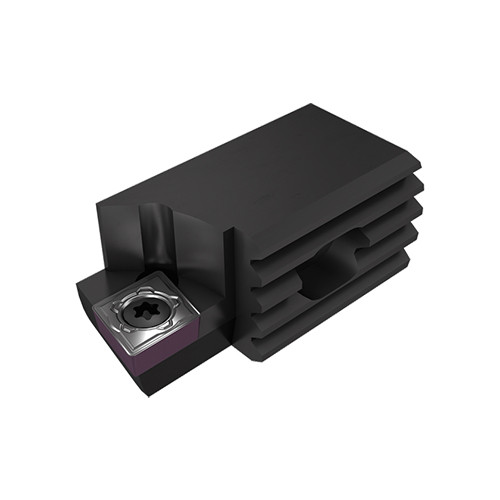

Back face turning toolholders for BHF fine boring heads.
| Body Diameter (BD) | 50 mm | Body Material | Steel |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 56 mm | Application | | Int. Back Turning 80° Diamond | |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 802 mm | Tool Type | Indexble Boring heads |
| Body Length (LB) | 62 mm | Cutting Diameter Minimum (DCN) | 56 mm |
| Shank Size (SS) | MB50 | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 802 mm | Unit | M |
| Master Insert Identification (MIID) | CCMT 09T3... |
Product Features
| Family Description | Back face turning toolholders for BHF fine boring heads. | COO | Italy |

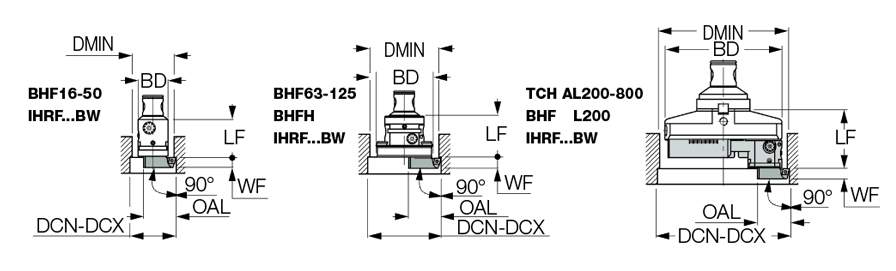

| Remarks | DMIN=(min bore diameter)=(DC+BD+1)/2 DC=Cut diameter BD=Size of the boring head being used |
Shipping Info
Weight per item
0.1190
