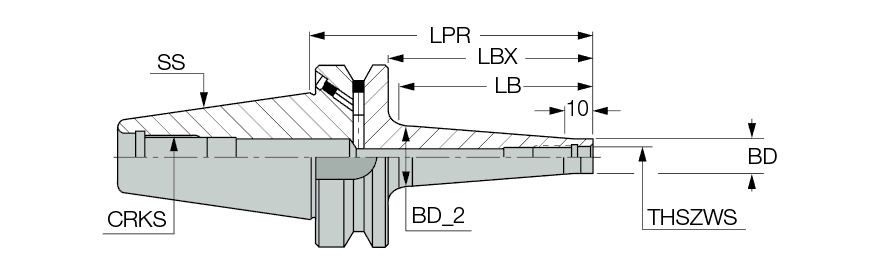

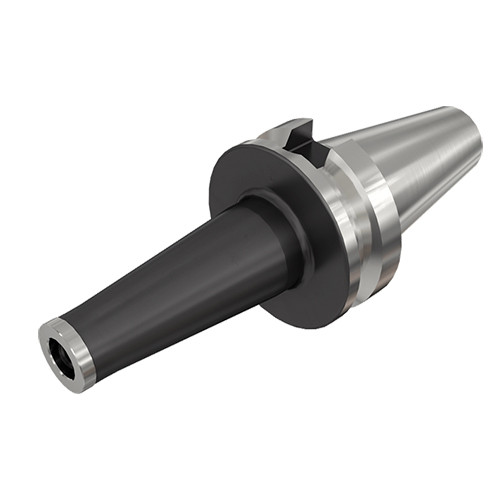

BT40 ODP12X 66
| Connection Diameter Machine Side (DCONMS) | 40 mm | Tool Type | BT |
| Protruding Length (LPR) | 66 mm | Measurement Type | Metric |
| Shank Size (SS) | 40 | Body Material | Steel |
| Body Diameter (BD) | 24 mm | Overall Length (OAL) | 131.4 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
Product Features
| Family Description | FLEX-FIT threaded adaptation with integral BT MAS-403 tapered shanks (ADB type). | FamilyName | BT-ODP (FLEX-FIT) |
| Remarks | For adaptation Click on More Info. The coolant passages in the B type flange are blocked with screws which can be removed when required. | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
1.0990
Name
Extensions
FamilyName
BT-ODP (FLEX-FIT)
BrandName
Iscar
