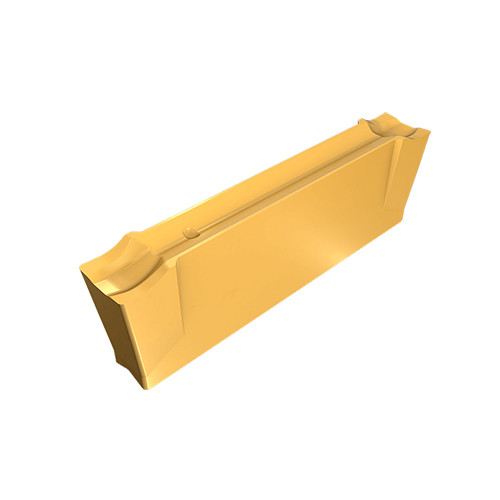

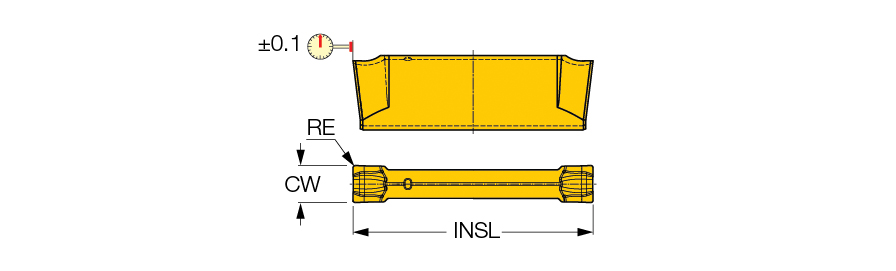

DGN 2002LF IC830
| Cutting Width (CW) | 2 mm | Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Face Grooving | Parting | |
| Corner Radius (RE) | 0.2 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.02 mm | Max. Grooving Feed (fg(max)) | 0.08 mm/rev |
| Overall Length (OAL) | 19.8 mm | Min. Grooving Feed (fg(min)) | 0.03 mm/rev |
| Insert Length (INSL) | 19.8 mm | Tool Type | Parting & Grooving Inserts |
| Cutting Depth Maximum (CDX) | 18 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN+TiN | Cutting Width Tolerance (+/-) (CWTOL) | 0.03 mm |
| Grade | IC830 | Unit | M |
| Cutting Direction (HAND) | Neutral |
Product Features
| Family Description | Double-sided parting and grooving inserts, first choice for stainless steel applications. | FamilyName | DGN-LF/LFT |
| Remarks | The LFT chipformer features basically the same design as the LF chipformer, except that it is reinforced by a T-land to improve its durability in interrupted-cut or on hard materials applications. It can be applied at higher feeds than the LF chipformer | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0026
Name
Parting Off Indexable Inserts
FamilyName
DGN-LF/LFT
BrandName
Iscar
